12 of 501 products
12
Position
UCF205-16
NKE

UCF205-16

  • Inner Ø
    25.4 mm / 0.984 in
  • Outer Ø
    95 mm / 3.74 in
  • Width
    35.8 mm / 1.378 in
  • Weight
    0.84 kg / 1.85 lb
UCF207-20
NKE

UCF207-20

  • Inner Ø
    31.75 mm / 1.22 in
  • Outer Ø
    117 mm / 4.606 in
  • Width
    44.4 mm / 1.732 in
  • Weight
    1.55 kg / 3.42 lb
UCF208-24
NKE

UCF208-24

  • Inner Ø
    38.1 mm / 1.496 in
  • Outer Ø
    130 mm / 5.118 in
  • Width
    51.2 mm / 2.008 in
  • Weight
    1.95 kg / 4.3 lb
UCF209-28
NKE

UCF209-28

  • Inner Ø
    44.45 mm / 1.732 in
  • Outer Ø
    137 mm / 5.394 in
  • Width
    52.2 mm / 2.047 in
  • Weight
    2.32 kg / 5.12 lb
UCF211-32
NKE

UCF211-32

  • Inner Ø
    50.8 mm / 1.969 in
  • Outer Ø
    163 mm / 6.417 in
  • Width
    58.4 mm / 2.283 in
  • Weight
    3.46 kg / 7.63 lb
UCF215-48
NKE

UCF215-48

  • Inner Ø
    76.2 mm / 2.992 in
  • Outer Ø
    200 mm / 7.874 in
  • Width
    78.5 mm / 3.071 in
  • Weight
    6.6 kg / 14.55 lb
UCP205-16
NKE

UCP205-16

  • Inner Ø
    25.4 mm / 0.984 in
  • Outer Ø
    140 mm / 5.512 in
  • Width
    71 mm / 2.795 in
  • Weight
    0.79 kg / 1.74 lb
UCP208-24
NKE

UCP208-24

  • Inner Ø
    38.1 mm / 1.496 in
  • Outer Ø
    184 mm / 7.244 in
  • Width
    98 mm / 3.858 in
  • Weight
    1.89 kg / 4.17 lb
F 16001
FERSA

F 16001

  • Inner Ø
    30 mm / 1.181 in
  • Outer Ø
    60.03 mm / 2.362 in
  • Width
    37 mm / 1.457 in
  • Weight
    0.408 kg / 0.9 lb
F 16002
FERSA

F 16002

  • Inner Ø
    35 mm / 1.378 in
  • Outer Ø
    68 mm / 2.677 in
  • Width
    37 mm / 1.457 in
  • Weight
    0.544 kg / 1.2 lb
F 16004
FERSA

F 16004

  • Inner Ø
    25 mm / 0.984 in
  • Outer Ø
    56 mm / 2.205 in
  • Width
    32 mm / 1.26 in
  • Weight
    0.335 kg / 0.74 lb

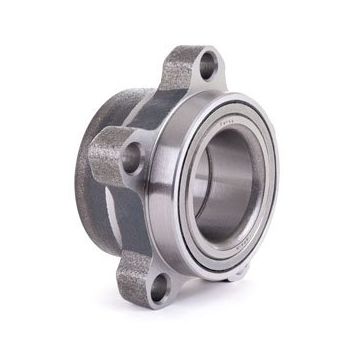

F 16010
FERSA

F 16010

  • Inner Ø
    30 mm / 1.181 in
  • Outer Ø
    117 mm / 4.606 in
  • Width
    37 mm / 1.457 in
  • Weight
    1.04 kg / 2.29 lb
12 of 501 products
12
Position

The double row angular contact ball bearings can bear large radial loads in both directions since the line of action for the loads form an angle at the bearing axle.

This family is identified under the nomenclature F 16000.

The main application of this typology is for light vehicle wheels, therefore we rely on special references whose outer ring has incorporated design changes to improve its integration with the final application.
