12 of 22 products
12
Position

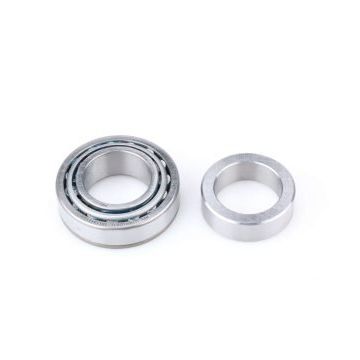

U 298/U 261 L
FERSA

U 298/U 261 L

  • Inner Ø
    34.987 mm / 1.339 in
  • Outer Ø
    64.975 mm / 2.52 in
  • Width
    18.1 mm / 0.709 in
  • Weight
    0.245 kg / 0.54 lb
U 298/U 261 L-C
FERSA

U 298/U 261 L-C

  • Inner Ø
    34.987 mm / 1.339 in
  • Outer Ø
    64.975 mm / 2.52 in
  • Width
    33.8 mm / 1.299 in
  • Weight
    0.358 kg / 0.79 lb

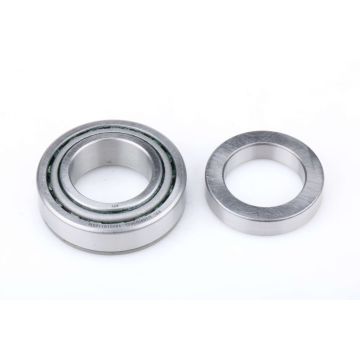

U 399/U 360 L
FERSA

U 399/U 360 L

  • Inner Ø
    39.688 mm / 1.535 in
  • Outer Ø
    73.025 mm / 2.874 in
  • Width
    19.395 mm / 0.748 in
  • Weight
    0.34 kg / 0.75 lb

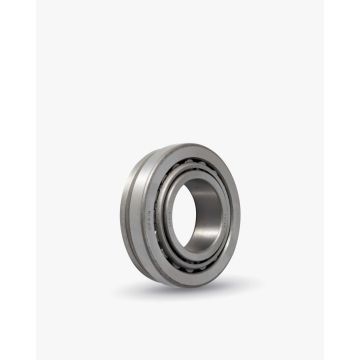

U 399/U 365 L
FERSA

U 399/U 365 L

  • Inner Ø
    39.688 mm / 1.535 in
  • Outer Ø
    79.967 mm / 3.11 in
  • Width
    19.395 mm / 0.748 in
  • Weight
    0.34 kg / 0.75 lb

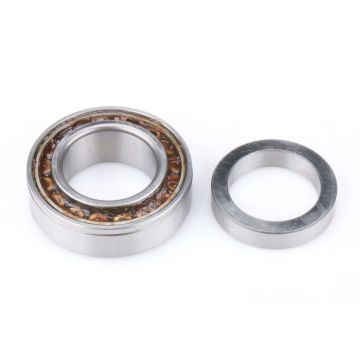

U 497/U 460 L
FERSA

U 497/U 460 L

  • Inner Ø
    44.987 mm / 1.732 in
  • Outer Ø
    79.975 mm / 3.11 in
  • Width
    24 mm / 0.945 in
  • Weight
    0.478 kg / 1.05 lb
LC0001
A&S

LC0001

  • Inner Ø
    42 mm / 1.654 in
  • Outer Ø
    58 mm / 2.283 in
  • Width
    15 mm / 0.591 in
  • Weight
    0.12 kg / 0.27 lb
U 399/U 365 L-C
A&S

U 399/U 365 L-C

  • Inner Ø
    39.688 mm / 1.535 in
  • Outer Ø
    79.97 mm / 3.11 in
  • Width
    40.6 mm / 1.575 in
  • Weight
    0.51 kg / 1.12 lb
U 497/U 460 L-C
A&S

U 497/U 460 L-C

  • Inner Ø
    44.987 mm / 1.732 in
  • Outer Ø
    79.975 mm / 3.11 in
  • Width
    36.6 mm / 1.417 in
  • Weight
    0.702 kg / 1.55 lb
U 399/U 360 L-A
A&S

U 399/U 360 L-A

  • Inner Ø
    39.688 mm / 1.535 in
  • Outer Ø
    73.025 mm / 2.874 in
  • Width
    32.2 mm / 1.26 in
  • Weight
    0.485 kg / 1.07 lb
UCF203
A&S

UCF203

  • Inner Ø
    17 mm / 0.669 in
  • Outer Ø
    86 mm / 3.386 in
  • Width
    33.3 mm / 1.299 in
  • Weight
    0.59 kg / 1.3 lb
UCF203-11
A&S

UCF203-11

  • Inner Ø
    17.463 mm / 0.669 in
  • Outer Ø
    86 mm / 3.386 in
  • Width
    33.3 mm / 1.299 in
  • Weight
    0.59 kg / 1.3 lb
UCF206-17
A&S

UCF206-17

  • Inner Ø
    26.988 mm / 1.024 in
  • Outer Ø
    108 mm / 4.252 in
  • Width
    40.2 mm / 1.575 in
  • Weight
    1.15 kg / 2.54 lb
12 of 22 products
12
Position

The U type tapered roller bearings are an exception within the conventional tapered roller bearings since this is a compact unit type that includes the grease and is pre-regulated without having to install an opposite bearing. Furthermore, they have a flange on the outer ring that is fastened axially in the application once the bearing is mounted.
